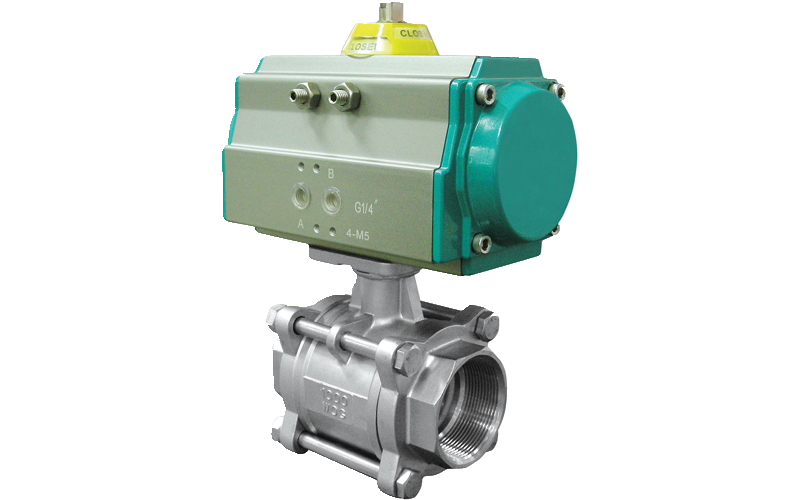

气动螺纹球阀
High-performance 3-piece ball valve designed for easy maintenance, tight sealing and reliable flow control in industrial piping. Available in SS and brass.
Specifications
3-Piece Ball Valve Specifications
Size Range
NPS ¼ to 4 / DN 8 to 100
Body Materials
Stainless Steel, Carbon Steel, Special Alloys
Maximum Allowable Operating Pressure
2200 psi CWP (151 Bar)
Stem Materials
316 Stainless Steel
Temperature Range
-50°F to 550°F (-46°C to 287°C)
Seat Materials
Standard: TFM 1600, Optional: PEEK, RPTFE
Face To Face
ASME B16.10, Manufacturer Standard
Ball Materials
CF8M Stainless Steel
Shutoff Rating
Zero Leakage
Design Standard
ASME B16.34 Class 600
Body Style
Three Piece
Testing Standard
API 598, MSS SP72
End Connections
Threaded ASME B1.20.1 NPT, Socket Weld ASME B16.11, Extended Socket Weld, Butt Weld ASME B16.25, Extended Butt Weld, Flanged Class 600, ASME B16.10, ASME B16.5
Ports
Full Port NPS ¼ to 4 / DN 8 to 100
Standard Port NPS ¾ to 2½" / DN 20 to 65
Certifications
API 607 4th Edition, ATEX, CRN, NACE MR0175, PED, PE(S)R, TR CU, SIL
Applications
Process, Steam, Fire Safe, Industrial Gases
